- 15,35(W) x 2,68(D) x 13,71(H) inch
- 390(W) x 68(D) x 348(H) mm
Analytics - Intelligence - Hybrid DVR - Video Gateway!
- Mix & Match 4 Intelligent Channels
- Total of 50 Hybrid CCTV security cameras
- 2xHDMI – 50 channels display for video matrix
- OnVif, H264, Mjpeg full support
- 1Gb/s Ethernet connection support
- 1x SSD/HDD for OS/System
- 1x3Tb HDD for video recording: Between 30 to 90 days recording
- Memory CELL directly on-board for Facial & licence plate Recognition DataBase @600Mb/s
- Use as Gateway to video SAN/NAS/iSCSI/NVR/JBOD
- Unlockable to support 3rd party applications under warranty
- Installation & 1 years warranty on-site included
- Rackable in standard 19inch
- Webserver for Mobile devices
|
||||
| Click to view full image |
VIDEO MANAGEMENT
DEVICE MANAGEMENT
SMART SEARCH CAPABILITIES
|
EVENT / REACTION MANAGEMENT
COMPREHENSIVE VIDEO ANALYTICS SUITE
ADVANCED CONFIGURATION
|
|
Eagle Target
|
|
Video surveillance IADVR security systems pass a rigorous testing program during development, undergoing extreme performance benchmarks. These tests result in completely reliable systems that are ready for intense daily computing and heavy duty usage with the utmost stability. |
|
|
All surveillance system run on Windows or Linux and fully support:
* Visit manufacturer site for technical specifications |
3D Real-Time Electronic maps 3D Orion is a software developed to provide a simple and consistent interface to exploit the potential of all types of devices and thus get rid of a specific site or manufacturer. While the user is accustoming with an intuitive ergonomics, 3D Orion plays an oversight role in keeping track of all actions and ensuring that the user has permission to make certain operations. |
|
A new "Machine to men" Interface We know that learning to use a software is an expensive operation. That is why 3D Orion benefits from our experience in terms of simplicity and accessibility. "Orion 3D" shows the operated site as a plan in 3 dimensions across which are positioned controlled devices. When possible, Orion 3D can also display one or more video cameras coming from the site or from a recorder. In this case, the devices can also be controlled by thanks to your mouse directly in the video window. |
Interceptor S50

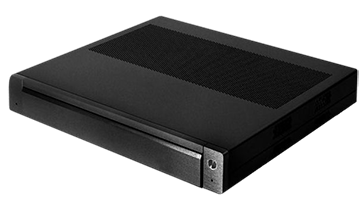

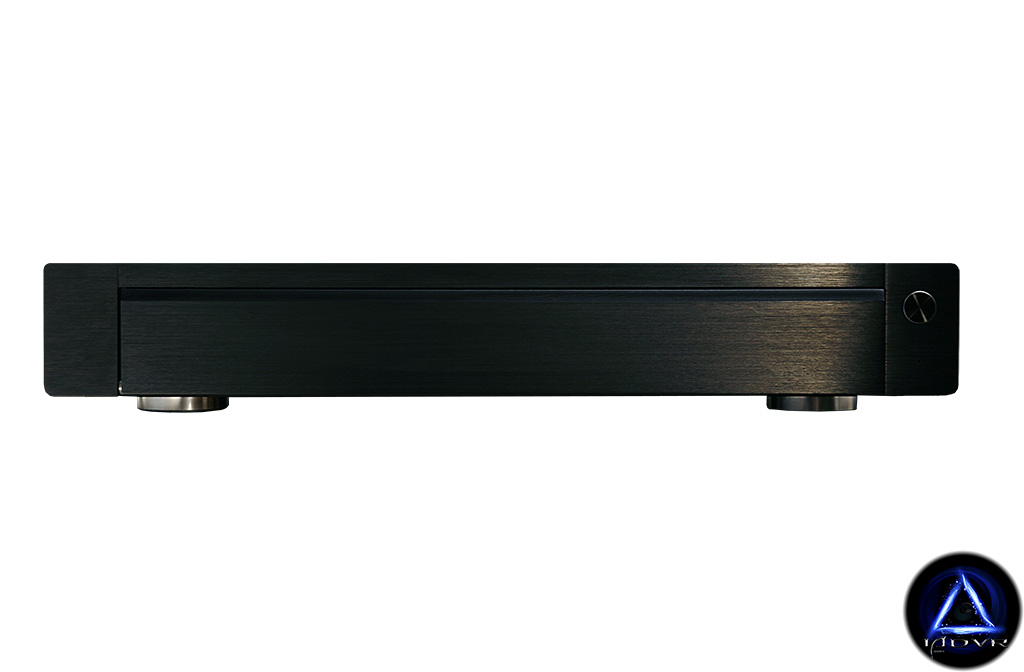

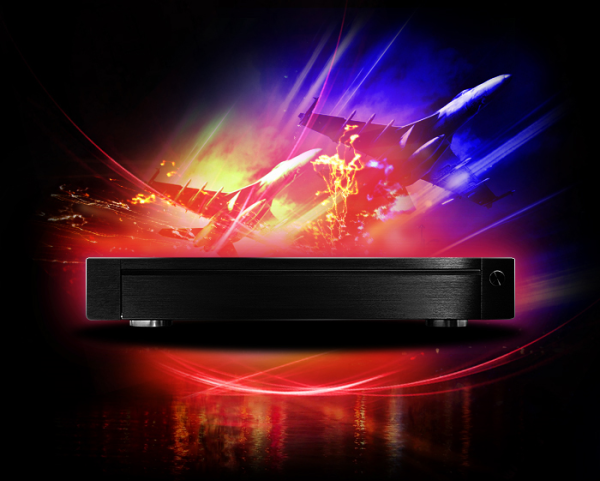

Every inch of your store counts. Interceptor S50, your Physical Security and CCTV (Close Captioned TV) DVR (Digital Video Recorder), was designed to minimize the space it occupies (Small Form Factor Security DVR), without compromising power or reliability. The smallest unit of the Interceptor family is designed to fit in a Switch Rack. This is a Stealth DVR; its appearance similar to any home electronic device and go unnoticed. Its dimensions also are similar to a cash drawer, it can be installed or horizontally behind the counter of a convenience store, under an electronic appliance, on a shelf behind the cashier.

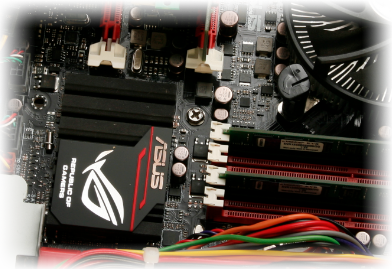

Considering it’s black brushed aluminum finish, the entire housing is a heat dissipation tool and the CPU is surmounted by a wide low profile Heatsink & fan. The Motherboard, with integrated video circuit, comes from the PC Gamers world. It provides the necessary power to support intelligence and analytic applications. Its O/S is installed on a mSATA drive with a transfer rate of 600 Mb/s to maximise performances and uptime and can handle 1 video drive.
Interceptor S50 is designed to manage 8 to 30 security cameras environments, either analog, numeric (IP) or hybrid (in a combination of both camera types). Interceptor S50 is modular and scalable, which means you can add units in time for better CCTV/Security Camera coverage or to simply follow your growth in a Pay-As-You-Grow model.

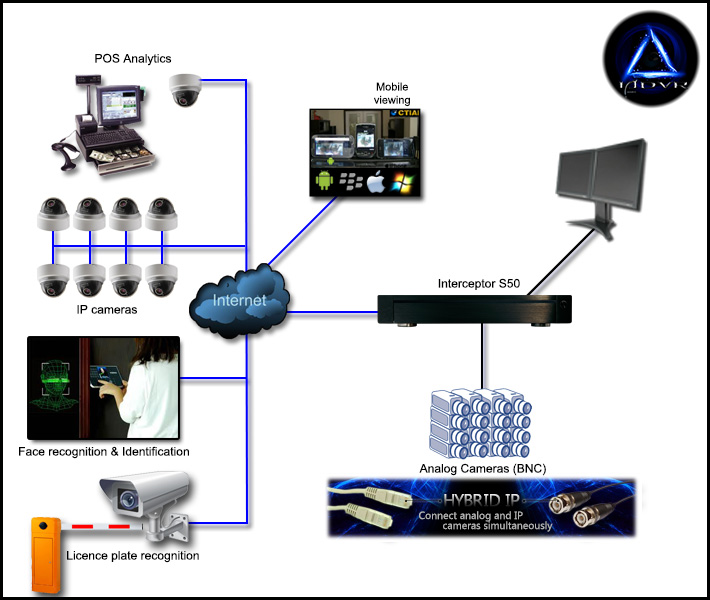

Interceptor S50 can be used as a gateway to your NVR (Network Video Recorder), such as ISS, Milestone
or Genetec and to your CCTV storage infrastructure (SAN, NAS, iSCSI, NVR OR JBOD). Interceptor S50 is equipped with a DVD burner, Card

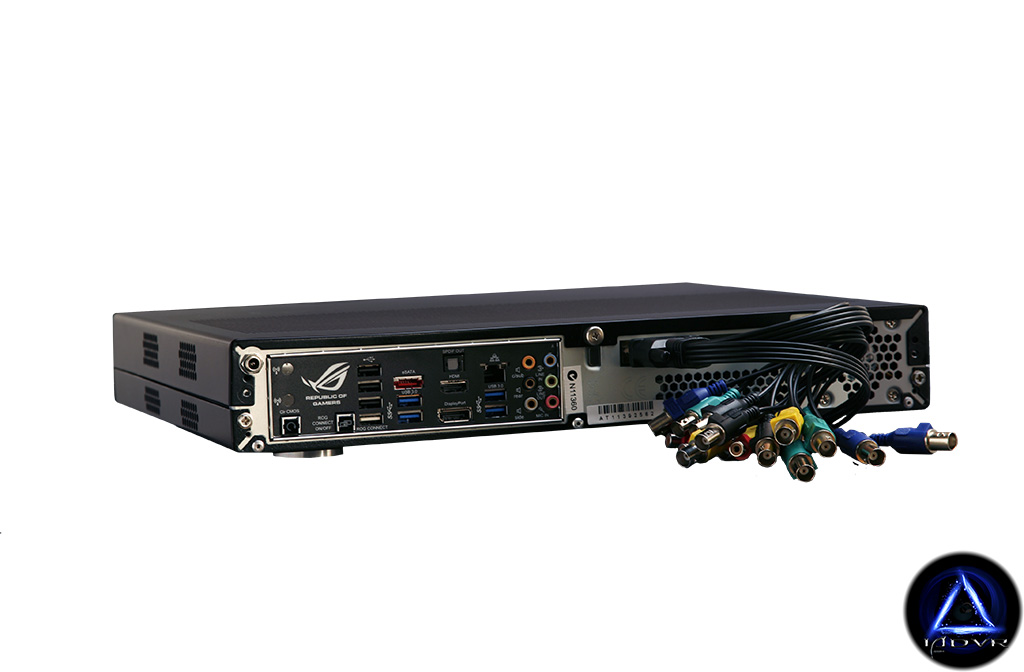

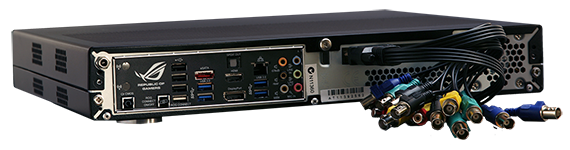

Reader drives for major memory card formats (MS Duo, MS Pro, CF/MD, MMC, and SM) FireWire and USB ports.
CTIAI exclusive innovation
Total of 50 Hybrid CCTV security cameras:
Support simultaneously up to 1240fps IP and up to 240 fps analog in Hybrid mode * Specifications based on: 2MP quality @ 1080 HD resolution @ 30fps image @ 1mbps network bit rate Up to 4 channels: Face recognition and/or Licence plate capture Motion detection & multi-zone + More info
|
|
+ More info
|
|
Slick, Small & Sexy: comes with 1 SSD drives for system Drive & 3Tb of video recording space & 32 GB Memory cell on-board @3Gb/s for Facial and license plate recognition Database. + More info
|
390mm (W) x 68 (H) x 348 (D) 15,35 x 2,68 x 13,71 inch |
 |

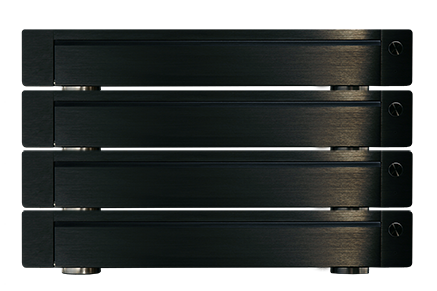

Modular: Just stack based on your camera requirements, power will be available and well balanced Shrink a PC or Workstation to make it fit in a network rack. Cameras: Support IP, IR or analog (BNC) Video IP Gateway: Use the S50 as a ISS, Milestone or Genetec video Gateway to your SAN/NAS/iSCSI/NVR/JBOD Unlock your S50 and run your own applications like POS, Back-Office (BO) or others. Just do what you want + More info
|
|
Generation 3 Intel i5 @ 3.8Ghz supercharged 8Gb of Ram DDR3 @ 1333mhz supercharged Asus Republic of Gamers (ROG) + More info
|
 |
Supports Dual-Display HDMI & only 130W + More info
|
|
|

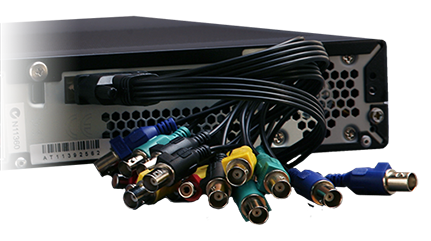

Hybrid: Add capture card for up to 32 cameras analog cameras @240Fps + More info
|
|

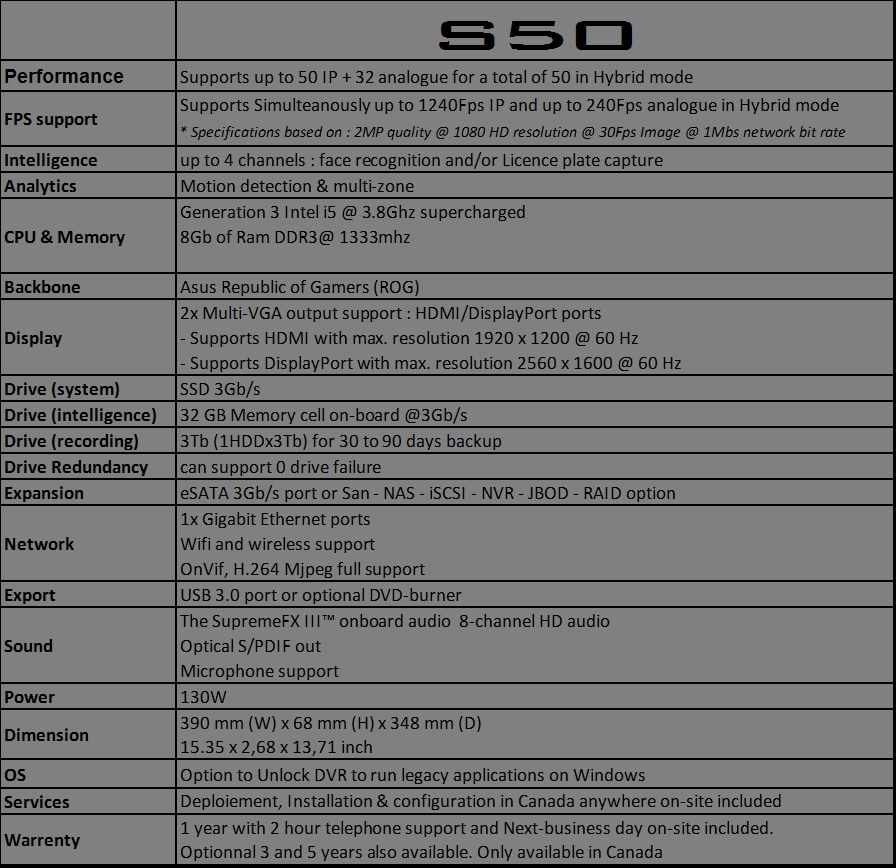

Interceptor s50 specifications
Click for complete supported hardware list.
|

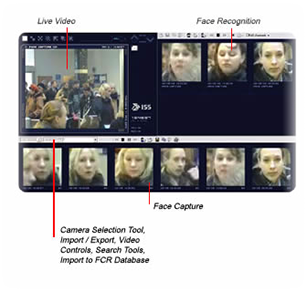

Intelligent Functions Facial Capture & Recognition (FCR) A facial recognition system is a computer application for automatically identifying or verifying a person from a digital image or a video frame from a video source. One of the ways to do this is by comparing selected facial features from the image and a facial database. The system can stand alone for surveillance purposes or be integrated into access control or other third party systems to enhance functionality. Face recognition has 95% accuracy in varying conditions and as such, is ranked amongst the highest of all Face Recognition systems. |
|
|
Functionalities of the module (or system):
|
|

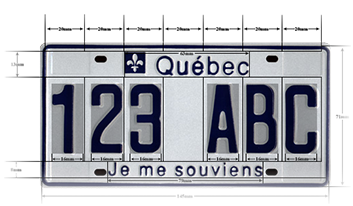

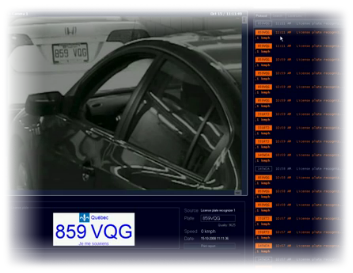

License Place Recognition (LPR) Licence plate recognition is an Intelligent Video Analytics Module and provides License Plate Recognition and comparative analysis of face plates for various types of vehicles. License Plate Recognition is a provides recognition of cars plate numbers, reliably working in the wide range of external conditions, and is easily integrated into legacy security equipment, executive devices and external databases. License Plate Recognition is an effective tool for the solution of registration tasks, identification and provision for car safety, control of traffic, and access control of vehicles. |
|
Functionalities of the Car License Plate Recognition module:
|
|
|

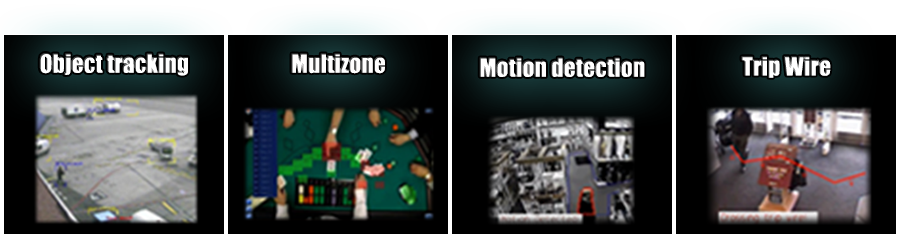

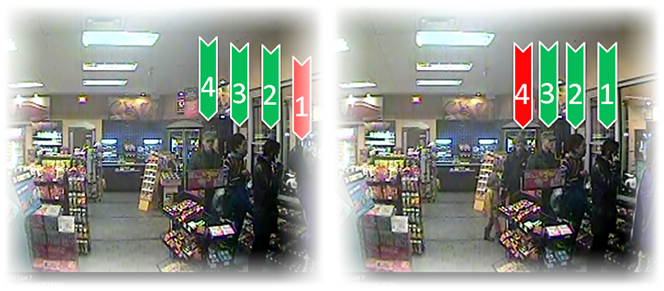

Advanced analytics is the capability of automatically analyzing video to detect and determine temporal events not based on a single image. The algorithms can be implemented as software on general purpose machines, or as hardware in specialized video processing units. deo Motion Detection is one of the simpler forms where motion is detected with regard to a fixed background scene. More advanced functionalities include video tracking . Based on the internal representation that VCA generates in the machine, it is possible to build other functionalities, such Is identification, behavior analysis or other forms of situation awareness. VCA relies on good input video, so it is often combined with video enhancement technologies such as video denoising, image stabilization, unsharp masking and super-resolution. |
|
|
| Functions | Description |
| Dynamic Masking | Blocking a part of the video signal based on the signal itself, for example because or privacy concerns. |
| Motion Detection | Motion detection is used to determine the presence of relevant motions in the observed scene. |
| Object Detection | Object detection is used to determine the presence of a type of object or entity, for example a persor or a car. Other examples include fire and smoke detection. |
| Recognition | Face recognition and Automatic Number Place Recognition are used to recognize, and therefore possibly identify persons or cars. |
| Tamper Detection | Tamper detection is used to determine whether the camera or output signal is tampered with. |
| Video Tracking | Video tracking is used to determine the location of persons or objects in the video signal, possibly with regards to an external reference grid. |
| Table S50 | ||||||
|
